Nennleistung (wählbar): | 7 W - 20 W |
Leuchten-Lichtstrom: | 770 lm – 2.200 lm |
Lichtausbeute (Effizienz): | max 110 lm /W |
Abstrahlwinkel | 120° |
Farbwiedergabeindex (CRI): | Ra > 70 |
Lichtfarbe: | 6000K (Kaltweiß) |
Lebensdauer (L70B10): | ≥ 36.000 h |
Netzanschluss: | 230 V AC: Zwei Meter Kabel 3 x 0,75 mm² 24 V AC/DC: M12 Anschlussbuchse |
Betriebsumgebungstemperatur: | -20 °C bis +45 °C |
Schutzklasse: | Modell 230 V AC: I (Erdleiteranschluss) Modell 24 V AC/DC: III (Schutzkleinspannung) |
Schutzart: | IP68 |
IK-Schutzklasse (Stoßschutz): | IK10 |
Garantiezeit: | 2 Jahre |

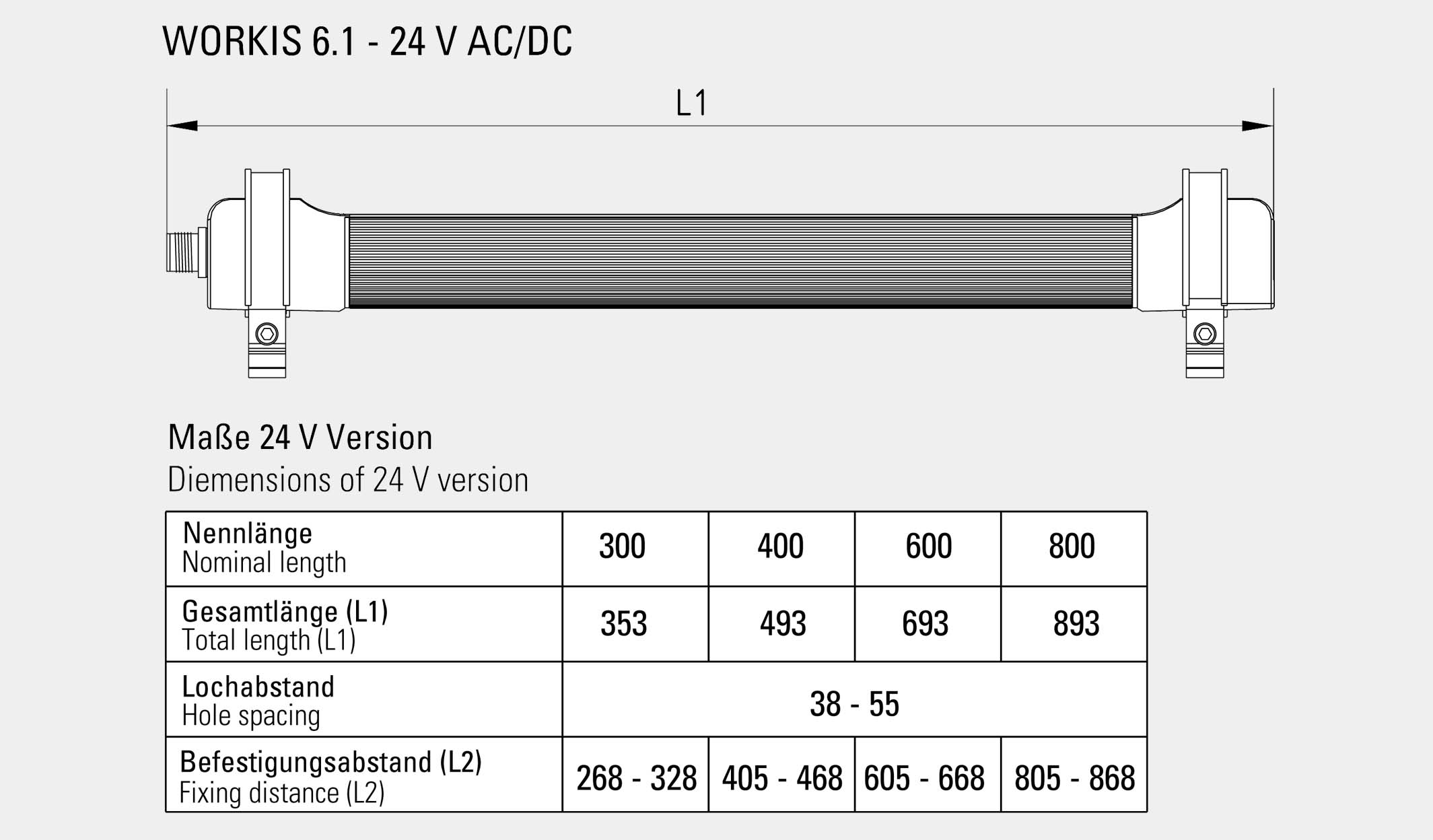

Bezeichnung | Maße [mm] (L x B x H) | Anschlussleistung [W] | Abstrahlwinkel | Leuchtenlichtstrom [lm] | Lichtfarbe (Farbtemperatur) | Artikelnummer |
---|---|---|---|---|---|---|
WORKIS 6.1 24 V AC/DC | 353 x 60 x 50 | 7 | 120° | 770 | 6000K | S-ML-B13007W |
493 x 60 x 50 | 12 | 120° | 1320 | 6000K | S-ML-B140012W | |
693 x 60 x 50 | 16 | 120° | 1760 | 6000K | S-ML-B160016W | |
893 x 60 x 50 | 20 | 120° | 2200 | 6000K | S-ML-B180020W | |
WORKIS 6.1 230 V AC | 380 x 60 x 50 | 7 | 120° | 770 | 6000K | S-ML-C13007W |
520 x 60 x 50 | 12 | 120° | 1320 | 6000K | S-ML-C140012W | |
720 x 60 x 50 | 16 | 120° | 1760 | 6000K | S-ML-C160016W | |
920 x 60 x 50 | 20 | 120° | 2200 | 6000K | S-ML-C180020W |
